Overview
Giwadrip precision irrigation systems – drop by drop deliver the exact amount of water plants need at the right time, preventing overwatering and underwatering. This tailore approach reduces water Precision irrigation systems – drop by drop deliver the exact amount of water plants need at the right time, preventing overwatering and underwatering. This tailored approach reduces water waste and minimizes stress on plants, promoting healthier growth and resilience against drought conditions.waste and minimizes stress on plants, promoting healthier growth and resilience against drought conditions.

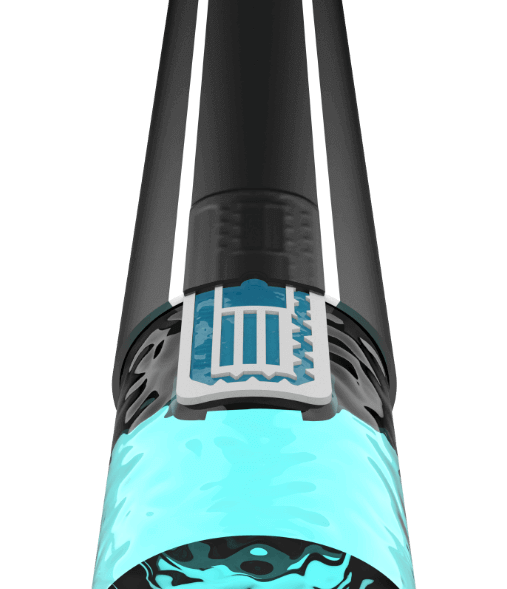

Benefit of using Giwatape™ with flat emitters
Drop-by-drop irrigation enables efficient watering, supplying a crucial part of the plant with water – the root. This way, water loss is prevented, and water is not retained on the leaves or soil, which significantly reduces evaporation or the outflow of the water.
System drop by drop delivers water to the roots of plants and the soil between plants remains dry. This is very important because if the soil remains dry, most seeds will not germinate.
When water is applied using a traditional irrigation system, the soil between plants remains wet and most seeds germinate.

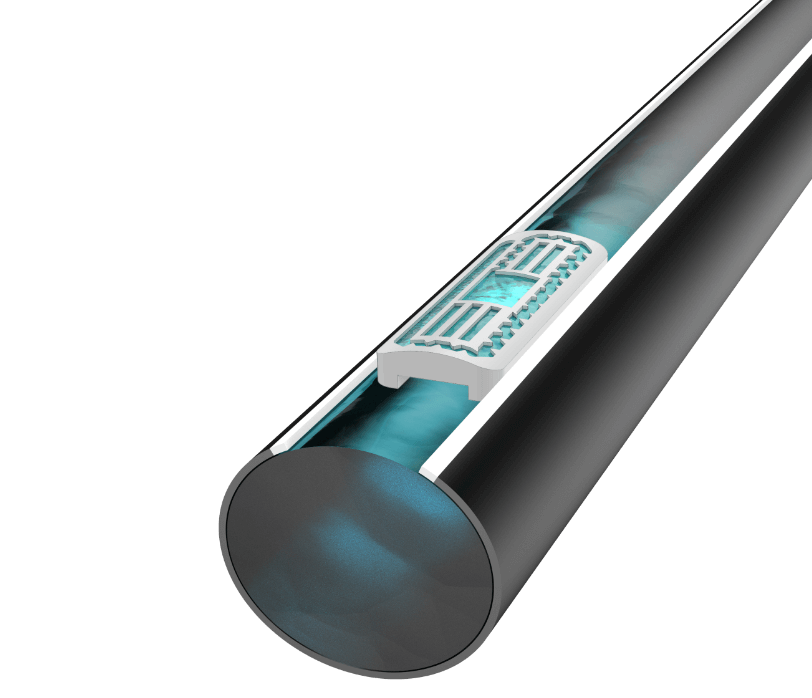

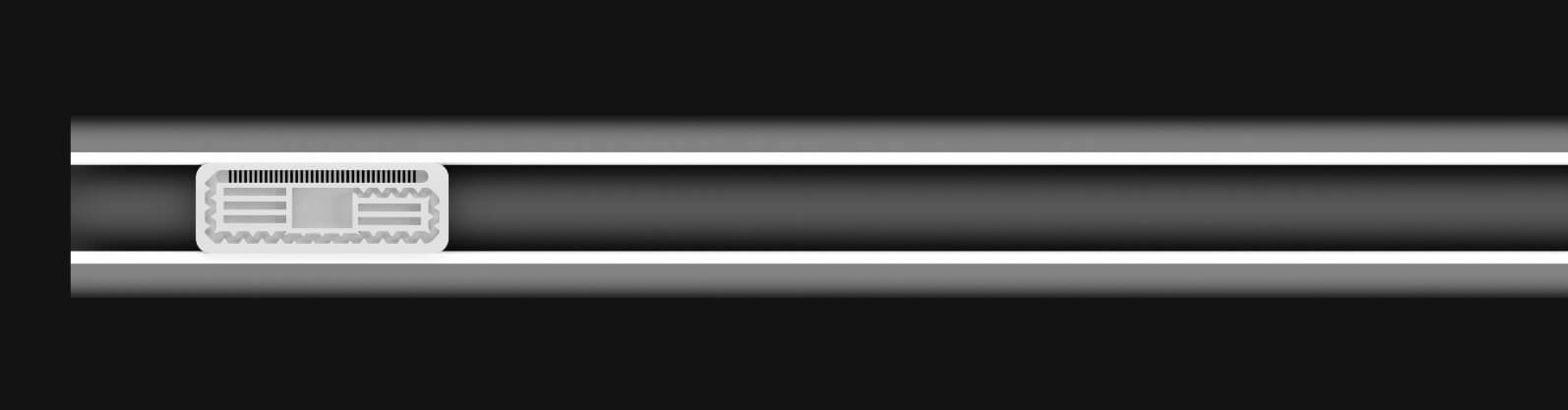

A special system of forming tapes with a constant labyrinth delivers superior performance and uniformity of drippers. The design of a continuous labyrinth provides a high degree of resistance to clogging and longer use of the system, and therefore the more rational use of water. A special system of design of a tape with constant labyrinths provides superior performance and uniformity of emitters.
- Seamless construction for greater reliability,
- Precisely shaped emitters for high uniformity,
- Laser treated hatch eliminates blockages on the startup and prevents from root intrusion,
- The turbulent flow-path design provides high degree of resistance to clogging,
- Clearly visible white stripes for better recognition and indicators emitters,
- Strong material resistant to abrasion land damages,
- Thanks to the versatility and reliability it is easy to install and reduces your work time,
- The production of the system and its quality is in accordance with SRPS EN ISO 9261:2011,
- The flow on the emitters is guaranteed at a nominal pressure of 0.7 bar,
- Irrigation tapes should not constantly work at pressures outside the permitted working pressure range of 0.6-0.9 bar,
- Washing is an operation during which the pressure inside the pipe increases to 1.2 bar for 15 minutes in order to prevent clogging of the emitters.
Technical data Ø16
| Wall тhickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Length of the application of the Giwadrip 16mm
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 1,1 L/h | 90% | 138m | 180m | 216m |
| 1,1 L/h | 85% | 170m | 222m | 267m |
| 1,6 L/h | 90% | 110m | 140m | 170m |
| 1,6 L/h | 85% | 135m | 175m | 210m |
| 2,3 L/h | 90% | 86m | 112m | 135m |
| 2,3 L/h | 85% | 107m | 139m | 167m |
| 3,0 L/h | 90% | 79m | 100m | 120m |
| 3,0 L/h | 85% | 98m | 123m | 150m |
| 3,6 L/h | 90% | 63m | 82m | 98m |
| 3,6 L/h | 85% | 78m | 101m | 122m |
Product range Ø16
| Wall тhickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Length of the application of the Giwadrip 16mm
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 1,1 L/h | 90% | 138m | 180m | 216m |
| 1,1 L/h | 85% | 170m | 222m | 267m |
| 1,6 L/h | 90% | 110m | 140m | 170m |
| 1,6 L/h | 85% | 135m | 175m | 210m |
| 2,3 L/h | 90% | 86m | 112m | 135m |
| 2,3 L/h | 85% | 107m | 139m | 167m |
| 3,0 L/h | 90% | 79m | 100m | 120m |
| 3,0 L/h | 85% | 98m | 123m | 150m |
| 3,6 L/h | 90% | 63m | 82m | 98m |
| 3,6 L/h | 85% | 78m | 101m | 122m |
Technical data Ø22
| Wall тhickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Length of the application of the Giwadrip 16mm
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 1,1 L/h | 90% | 138m | 180m | 216m |
| 1,1 L/h | 85% | 170m | 222m | 267m |
| 1,6 L/h | 90% | 110m | 140m | 170m |
| 1,6 L/h | 85% | 135m | 175m | 210m |
| 2,3 L/h | 90% | 86m | 112m | 135m |
| 2,3 L/h | 85% | 107m | 139m | 167m |
| 3,0 L/h | 90% | 79m | 100m | 120m |
| 3,0 L/h | 85% | 98m | 123m | 150m |
| 3,6 L/h | 90% | 63m | 82m | 98m |
| 3,6 L/h | 85% | 78m | 101m | 122m |
Product range Ø22
| Wall тhickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Length of the application of the Giwadrip 16mm
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 1,1 L/h | 90% | 138m | 180m | 216m |
| 1,1 L/h | 85% | 170m | 222m | 267m |
| 1,6 L/h | 90% | 110m | 140m | 170m |
| 1,6 L/h | 85% | 135m | 175m | 210m |
| 2,3 L/h | 90% | 86m | 112m | 135m |
| 2,3 L/h | 85% | 107m | 139m | 167m |
| 3,0 L/h | 90% | 79m | 100m | 120m |
| 3,0 L/h | 85% | 98m | 123m | 150m |
| 3,6 L/h | 90% | 63m | 82m | 98m |
| 3,6 L/h | 85% | 78m | 101m | 122m |
Save your time
Maintenance of the drop by drop system takes less time. When plants get deep, consistent watering, they thrive. Inefficient, shallow watering can be a real stress for plants. Drip irrigation system promotes healthy growth and disease resistance plants
Save water
Install the drop-by-drop irrigation system and you will use less water for irrigation. If you use wells, you will notice a significant decrease in your pumping costs. You will no longer need to water the garden manually. With the automatisation of your system, you will not need to hire someone to water the plants while you are on vacation. Reducing plant diseases and unwanted weeds will considerably reduce your gardening labour and maintenance costs.
