Tehnologija ekstruzije koristi visokokvalitetne specijalno razvijene polimere, poznate po svojoj čvrstoći i fleksibilnosti. Ovi polimeri su razvijeni specijalno za upotrebu u teškim industrijskim i poljoprivrednim sredinama.
Giwadrip sistemi za navodnjavanje – kap po kap isporučuju tačnu količinu vode koja je biljkama potrebna u pravo vreme, sprečavajući prekomerno ili nedovoljno zalivanje. Ovaj prilagođeni pristup smanjuje gubitak vode i smanjuje stres kod biljaka, omogućavajući zdraviji rast i otpornost na uslove suše.

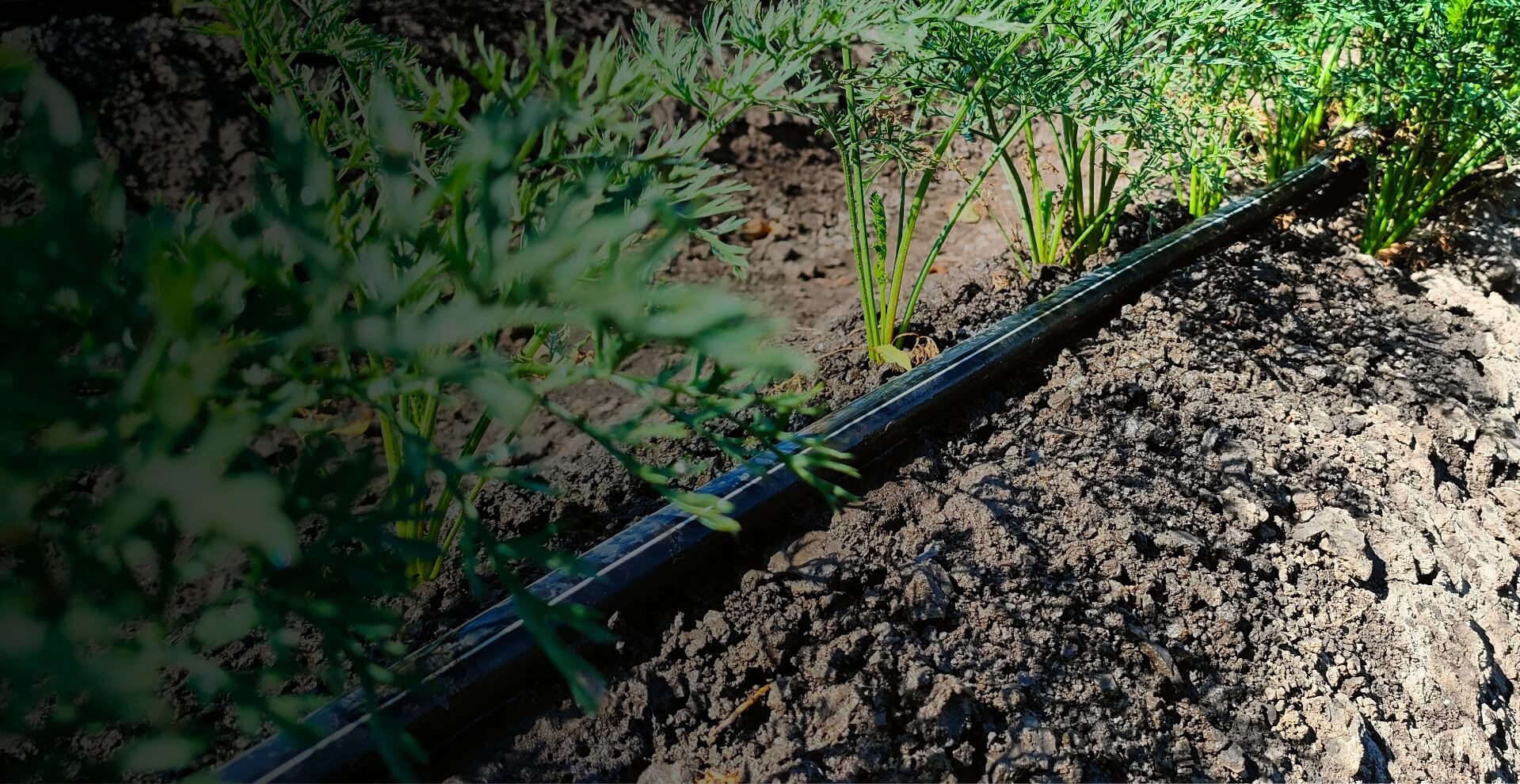

Sistem navodnjavanja kap po kap omogućava efikasno zalivanje, snabdevajući krucijalni deo biljke vodom – koren. Na ovaj način je sprečen gubitak vode jer se ona ne zadržava na lišću i okolnoj zemlji što značajno snižava isparavanje.
Upotreba Giwa kap po kap traka za navodnjavanje može dovesti do značajne uštede za poljoprivrednike, optimizacijom korišćenja resursa, uzgajivači mogu da smanje troškove povezane sa vodom i đubrivima dok istovremeno povećavaju prinos useva.

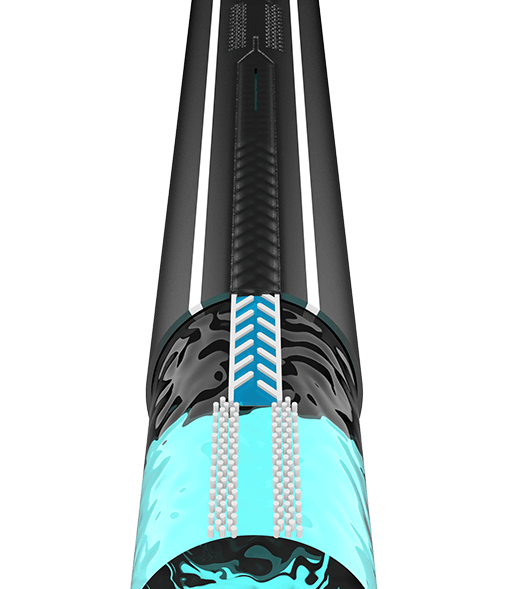

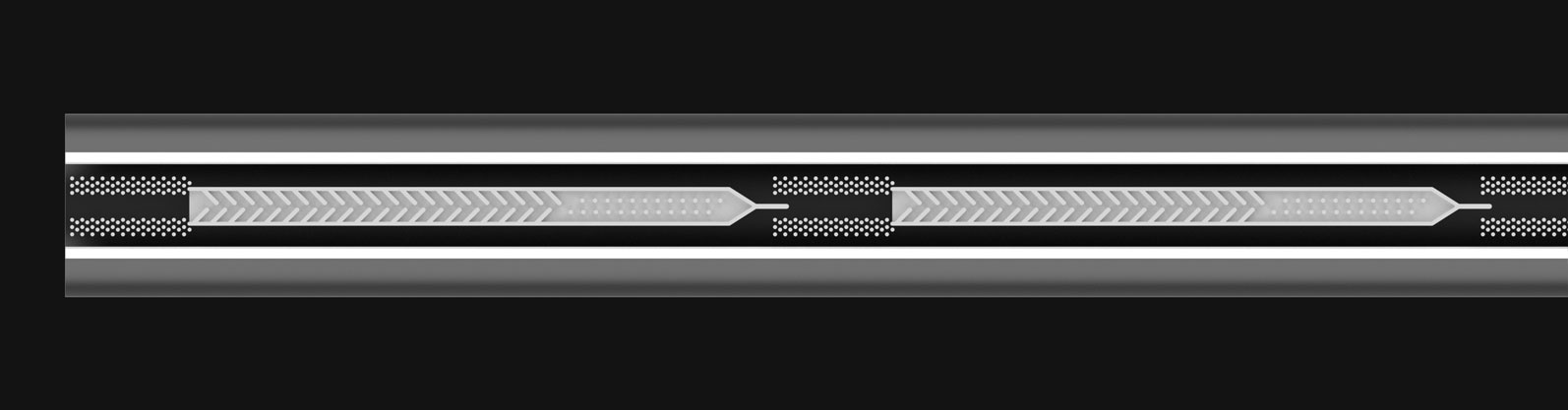

Specijalni sistem formiranja traka sa konstantnim lavirintom pruža vrhunske performanse i ujednačenost kapljača. Dizajn konstantnog lavirinta omogućava visok stepen otpornosti na zapušavanje i dužu upotrebu sistema, a samim tim i racionalniju upotrebu vode. Poseban sistem dizajna trake sa konstantnim lavirintima obezbeđuje vrhunske performanse i ujednačenost emitera.
Technical data Ø16
| Wall тhickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 0,6 L/h | 90% | 140m | 180m | 210m |
| 0,6 L/h | 85% | 170m | 220m | 260m |
| 1,0 L/h | 90% | 100m | 250m | 150m |
| 1,0 L/h | 85% | 125m | 160m | 185m |
| 1,5 L/h | 90% | 70m | 90m | 105m |
| 1,5 L/h | 85% | 85m | 110m | 130m |
| 2,0 L/h | 90% | 35m | 45m | 50m |
| 2,0 L/h | 85% | 75m | 95m | 105m |

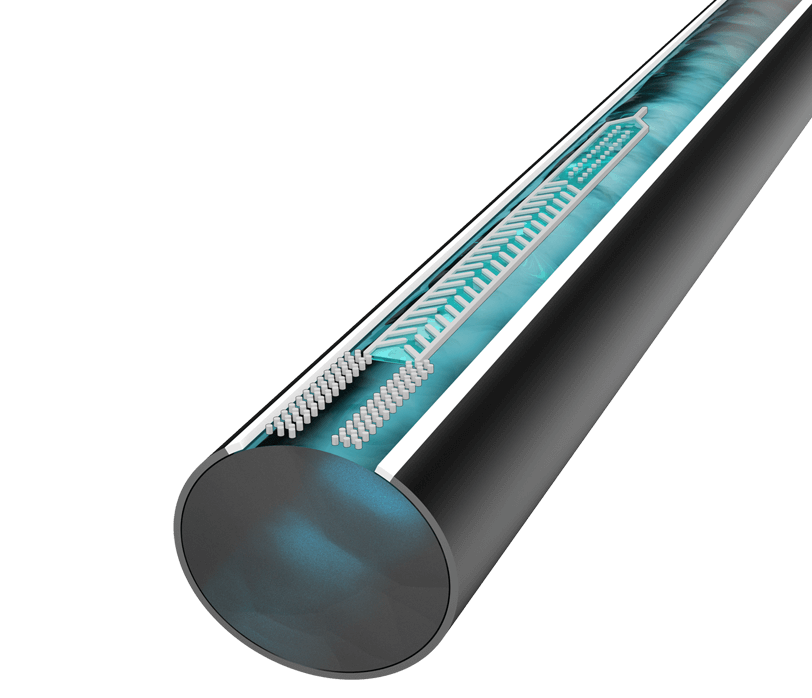

Product range Ø16
The table shows the characteristics of the product with wall thickness of 0.15mm with spacing of emitters to 10cm, 15cm, 20cm and 30cm. To request, there is a possibility of making tape with a special wall thickness and special emitter spacing, such as 8mil 10mil, 12mil and 14 mil.
| Code | Name | Inner nominal diameter | Wall thickness | Emitter spacing | Flow l/emitter | Flow l/meter | Coil length |
|---|---|---|---|---|---|---|---|
| GT16060610 | Giwatape | 16mm | 6mil [150mic] | 10cm | 0,6lph | 6lph | 3000m |
| GT16060615 | Giwatape | 16mm | 6mil [150mic] | 15cm | 0,6lph | 4lph | 3000m |
| GT16060620 | Giwatape | 16mm | 6mil [150mic] | 20cm | 0,6lph | 3lph | 3000m |
| GT16060630 | Giwatape | 16mm | 6mil [150mic] | 30cm | 0,6lph | 2lph | 3000m |
| GT16061010 | Giwatape | 16mm | 6mil [150mic] | 10cm | 1,0lph | 10lph | 3000m |
| GT16061015 | Giwatape | 16mm | 6mil [150mic] | 15cm | 1,0lph | 7lph | 3000m |
| GT16061020 | Giwatape | 16mm | 6mil [150mic] | 20cm | 1,0lph | 5lph | 3000m |
| GT16061030 | Giwatape | 16mm | 6mil [150mic] | 30cm | 1,0lph | 3,5lph | 3000m |
| GT16061510 | Giwatape | 16mm | 6mil [150mic] | 10cm | 1,5lph | 15lph | 3000m |
| GT16061515 | Giwatape | 16mm | 6mil [150mic] | 15cm | 1,5lph | 10lph | 3000m |
| GT16061520 | Giwatape | 16mm | 6mil [150mic] | 20cm | 1,5lph | 7,5lph | 3000m |
| GT16061530 | Giwatape | 16mm | 6mil [150mic] | 30cm | 1,5lph | 5lph | 3000m |
| GT16062010 | Giwatape | 16mm | 6mil [150mic] | 10cm | 2,0lph | 20lph | 3000m |
| GT16062015 | Giwatape | 16mm | 6mil [150mic] | 15cm | 2,0lph | 13,5lph | 3000m |
| GT16062020 | Giwatape | 16mm | 6mil [150mic] | 20cm | 2,0lph | 10lph | 3000m |
| GT16062030 | Giwatape | 16mm | 6mil [150mic] | 30cm | 2,0lph | 6lph | 3000m |
Technical data Ø22
The table shows the characteristics of the wall thickness of 6mil and 8mil with spacing from 20cm, 30cm and 40cm.
To request, there is a possibility of making tape with a special wall thickness and special emitter spacing.
| Wall thickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Depending on the uniformity of the flow with a constant pressure of 0.7 bar for inner pipe diameters 22mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm |
|---|---|---|---|
| 0,6 L/h | 90% | 330m | 440m |
| 0,6 L/h | 85% | 430m | 550m |
| 1,0 L/h | 90% | 260m | 330m |
| 1,0 L/h | 85% | 300m | 360m |
| 1,5 L/h | 90% | 190m | 240m |
| 1,5 L/h | 85% | 220m | 270m |
| 2,0 L/h | 90% | 130m | 160m |
| 2,0 L/h | 85% | 150m | 180m |

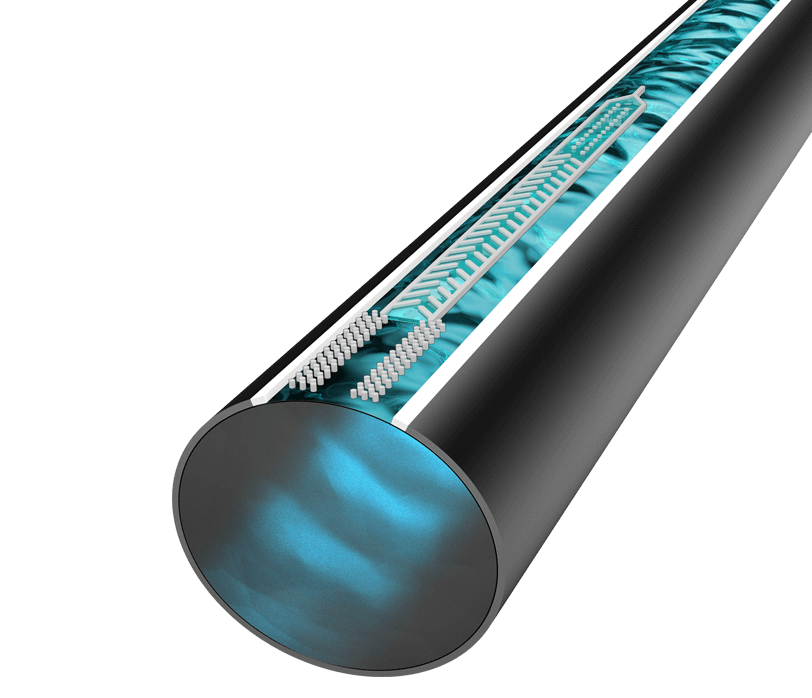

Product range Ø22
The table shows the characteristics of the product with wall thickness of 8 mil, 10 mil and 12 mil, with spacing of emitters to 20cm and 30cm. To request, there is a possibility of making tape with a special wall thickness such as 14 mil and special emitter spacing, such as 10 and 15cm.
| Code | Name | Inner nominal diameter | Wall thickness | Emitter spacing | Flow l/emitter | Flow l/meter | Coil length |
|---|---|---|---|---|---|---|---|
| GT22080620 | Giwatape | 22mm | 8mil [200mic] | 20cm | 0,6lph | 3lph | 1500m |
| GT22080630 | Giwatape | 22mm | 8mil [200mic] | 30cm | 0,6lph | 2lph | 1500m |
| GT22100620 | Giwatape | 22mm | 10mil [200mic] | 20cm | 0,6lph | 3lph | 1300m |
| GT22100630 | Giwatape | 22mm | 10mil [200mic] | 30cm | 0,6lph | 2lph | 1300m |
| GT22120620 | Giwatape | 22mm | 12mil [150mic] | 20cm | 0,6lph | 3lph | 1000m |
| GT22120630 | Giwatape | 22mm | 12mil [150mic] | 30cm | 0,6lph | 2lph | 1000m |
| GT22081020 | Giwatape | 22mm | 8mil [150mic] | 20cm | 1,0lph | 5lph | 1500m |
| GT22081030 | Giwatape | 22mm | 8mil [150mic] | 30cm | 1,0lph | 3,5lph | 1500m |
| GT22101020 | Giwatape | 22mm | 10mil [150mic] | 20cm | 1,0lph | 5lph | 1300m |
| GT22101030 | Giwatape | 22mm | 10mil [150mic] | 30cm | 1,0lph | 3,5lph | 1300m |
| GT22121020 | Giwatape | 22mm | 12mil [150mic] | 20cm | 1,0lph | 5lph | 1000m |
| GT22121030 | Giwatape | 22mm | 12mil [150mic] | 30cm | 1,0lph | 3,5lph | 1000m |
| GT22081520 | Giwatape | 22mm | 8mil [150mic] | 20cm | 1,5lph | 7,5lph | 1500m |
| GT22081530 | Giwatape | 22mm | 8mil [150mic] | 30cm | 1,5lph | 5lph | 1500m |
| GT22101520 | Giwatape | 22mm | 10mil [150mic] | 20cm | 1,5lph | 7,5lph | 1300m |
| GT22101530 | Giwatape | 22mm | 10mil [150mic] | 30cm | 1,5lph | 5lph | 1300m |
| GT22101520 | Giwatape | 22mm | 10mil [200mic] | 20cm | 1,5lph | 7,5lph | 1300m |
| GT22101530 | Giwatape | 22mm | 10mil [200mic] | 30cm | 1,5lph | 5lph | 1300m |
| GT22082020 | Giwatape | 22mm | 8mil [200mic] | 20cm | 2,0lph | 10lph | 1500m |
| GT22082030 | Giwatape | 22mm | 8mil [200mic] | 30cm | 2,0lph | 6lph | 1500m |
| GT22102020 | Giwatape | 22mm | 10mil [200mic] | 20cm | 2,0lph | 10lph | 1300m |
| GT22102030 | Giwatape | 22mm | 10mil [200mic] | 30cm | 2,0lph | 6lph | 1300m |
| GT22122020 | Giwatape | 22mm | 12mil [200mic] | 20cm | 2,0lph | 10lph | 1000m |
| GT22123020 | Giwatape | 22mm | 12mil [200mic] | 30cm | 2,0lph | 6lph | 1000m |
Održavanje sistema kap po kap funkcioniše veoma brzo i na taj način štedi vaše vreme, dok biljke dobijaju vodu baš kada im treba, čime se pospešuje njihov rast i povećavaju prinosi.
Korišćenjem sistema za navodnjavanje kap po kap troši se manje vode za navodnjavanje i primetni su znatno manji troškovi navodnjavanja. Precizno navodnjavanje omogućava da samo biljka dobije vodu u zoni korena, što značajno smanjuje rast korova i potrebu za pesticidima.
