Extrusion technology utilizes high-quality specially developed polymers, renowned for their firmness and flexibility. These polymers were developed specially for use in heavy industrial and agricultural environments.
Giwadrip precision irrigation systems – drop by drop deliver the exact amount of water plants need at the right time, preventing overwatering and underwatering. This tailored approach reduces water waste and minimizes stress on plants, promoting healthier growth and resilience against drought conditions.

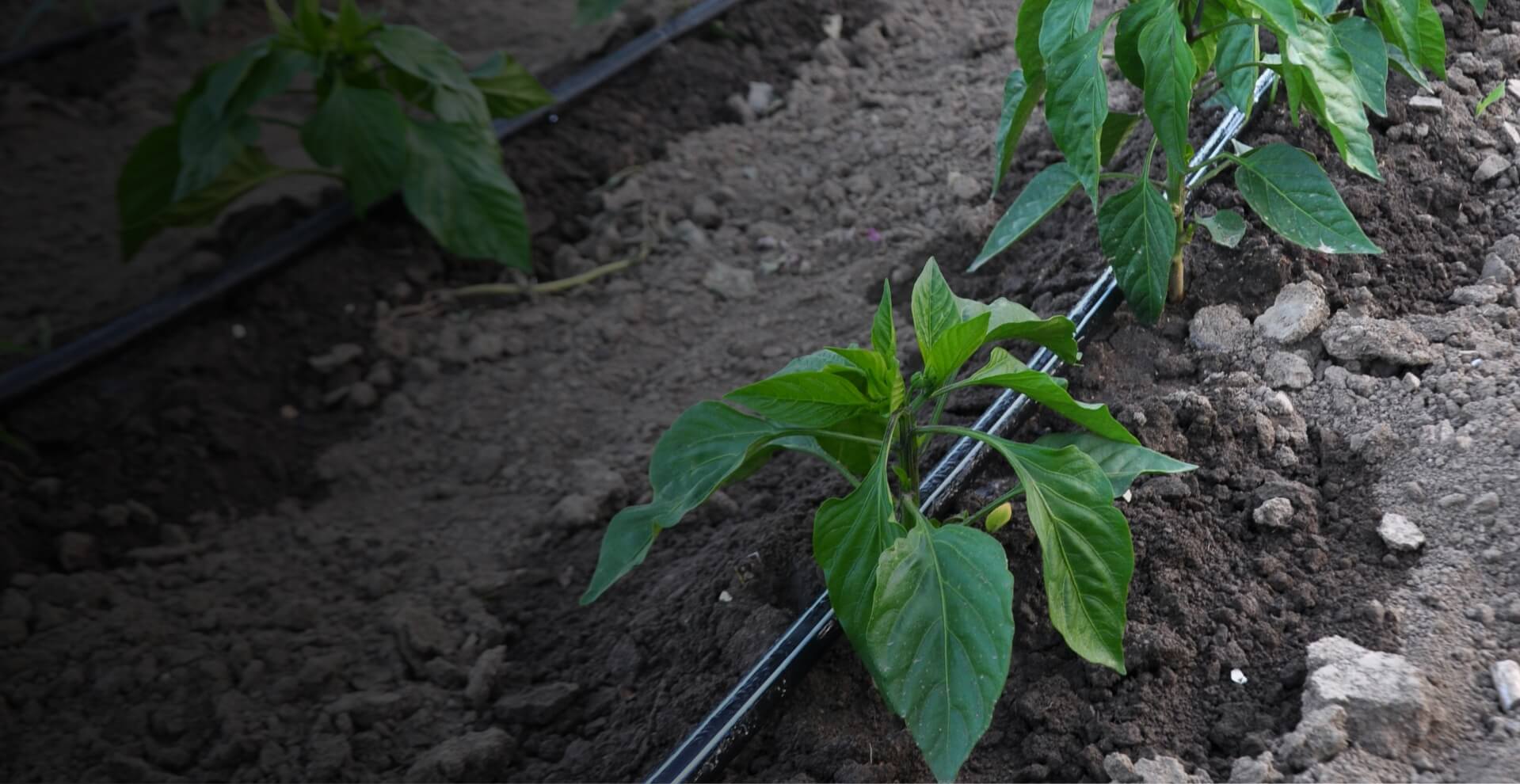

Drop-by-drop irrigation enables efficient watering, supplying a crucial part of the plant with water – the root. This way, water loss is prevented, and water is not retained on the leaves or soil, which significantly reduces evaporation or the outflow of the water.
System drop by drop delivers water to the roots of plants and the soil between plants remains dry. This is very important because if the soil remains dry, most seeds will not germinate.
When water is applied using a traditional irrigation system, the soil between plants remains wet and most seeds germinate.

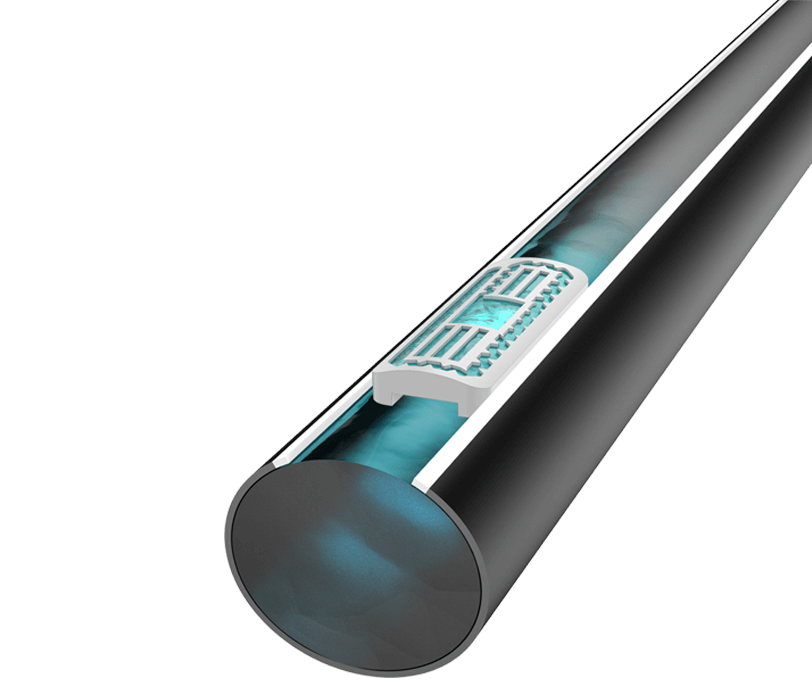

A special system of forming tapes with a constant labyrinth delivers superior performance and uniformity of drippers. The design of a continuous labyrinth provides a high degree of resistance to clogging and longer use of the system, and therefore the more rational use of water. A special system of design of a tape with constant labyrinths provides superior performance and uniformity of emitters.
Technical data Ø16
| Wall thickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 16mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 1,1 L/h | 90% | 138m | 180m | 216m |
| 1,1 L/h | 85% | 170m | 222m | 267m |
| 1,6 L/h | 90% | 110m | 140m | 170m |
| 1,6 L/h | 85% | 135m | 175m | 210m |
| 2,3 L/h | 90% | 86m | 112m | 135m |
| 2,3 L/h | 85% | 107mv | 139m | 167m |
| 3,0 L/h | 90% | 79m | 100m | 120m |
| 3,0 L/h | 85% | 98m | 123m | 150m |
| 3,6 L/h | 90% | 63m | 82m | 98m |
| 3,6 L/h | 80% | 78m | 101m | 122m |
Product range Ø16
| Code | Name | Inner nominal diameter | Wall thickness | Emitter spacing | Flow l/emitter | Flow l/meter | Coil length |
|---|---|---|---|---|---|---|---|
| GD16061120 | Giwadrip | 16mm | 6mil [150mic] | 20cm | 1,1lph | 5,5lph | 3000m |
| GD16061130 | Giwadrip | 16mm | 6mil [150mic] | 30cm | 1,1lph | 3,7lph | 3000m |
| GD16061140 | Giwadrip | 16mm | 6mil [150mic] | 40cm | 1,1lph | 2,7lph | 3000m |
| GD16081120 | Giwadrip | 16mm | 8mil [150mic] | 20cm | 1,1lph | 5,5lph | 2500m |
| GD16081130 | Giwadrip | 16mm | 8mil [150mic] | 30cm | 1,1lph | 3,7lph | 2500m |
| GD16081140 | Giwadrip | 16mm | 8mil [150mic] | 40cm | 1,1lph | 2,7lph | 2500m |
| GD16061620 | Giwadrip | 16mm | 6mil [150mic] | 20cm | 1,6lph | 10lph | 3000m |
| GD16061630 | Giwadrip | 16mm | 6mil [150mic] | 30cm | 1,6lph | 5lph | 3000m |
| GD16061640 | Giwadrip | 16mm | 6mil [150mic] | 40cm | 1,6lph | 3,5lph | 3000m |
| GD16081620 | Giwadrip | 16mm | 8mil [150mic] | 20cm | 1,6lph | 10lph | 2500m |
| GD16081630 | Giwadrip | 16mm | 8mil [150mic] | 30cm | 1,6lph | 5lph | 2500m |
| GD16081640 | Giwadrip | 16mm | 8mil [150mic] | 40cm | 1,6lph | 3,5lph | 2500m |
| GD16062320 | Giwadrip | 16mm | 6mil [150mic] | 20cm | 2,3lph | 15lph | 3000m |
| GD16062330 | Giwadrip | 16mm | 6mil [150mic] | 30cm | 2,3lph | 7,5lph | 3000m |
| GD16062340 | Giwadrip | 16mm | 6mil [150mic] | 40cm | 2,3lph | 5lph | 3000m |
| GD16082320 | Giwadrip | 16mm | 8mil [150mic] | 20cm | 2,3lph | 15lph | 2500m |
| GD16082330 | Giwadrip | 16mm | 8mil [150mic] | 30cm | 2,3lph | 7,5lph | 2500m |
| GD16082340 | Giwadrip | 16mm | 8mil [150mic] | 40cm | 2,3lph | 5lph | 2500m |
| GD16063020 | Giwadrip | 16mm | 6mil [150mic] | 20cm | 3,0lph | 20lph | 3000m |
| GD16063030 | Giwadrip | 16mm | 6mil [150mic] | 30cm | 3,0lph | 10lph | 3000m |
| GD16063040 | Giwadrip | 16mm | 6mil [150mic] | 40cm | 3,0lph | 6lph | 3000m |
| GD16083020 | Giwadrip | 16mm | 8mil [150mic] | 20cm | 3,0lph | 20lph | 2500m |
| GD16083030 | Giwadrip | 16mm | 8mil [150mic] | 30cm | 3,0lph | 10lph | 2500m |
| GD16083040 | Giwadrip | 16mm | 8mil [150mic] | 40cm | 3,0lph | 6lph | 2500m |

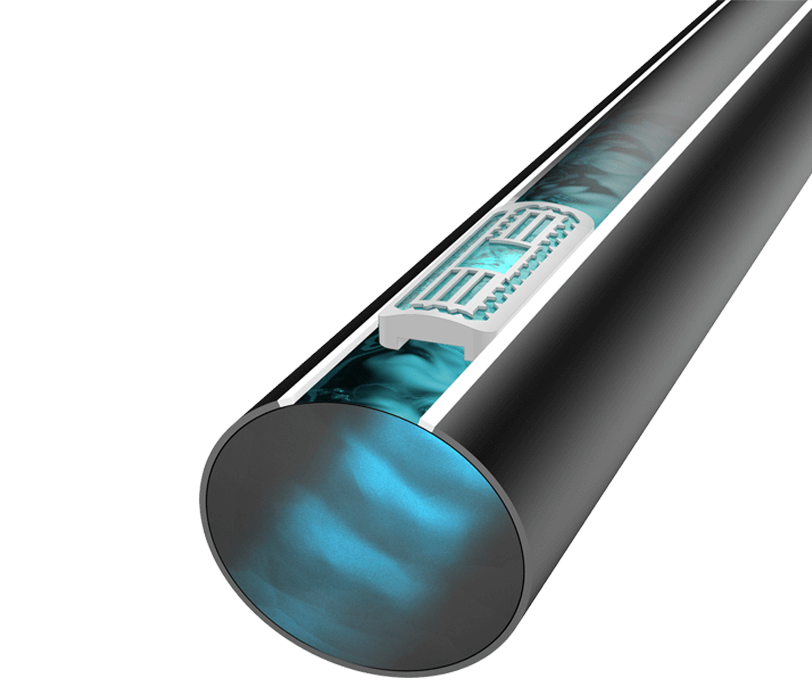

Technical data Ø22
The table shows the characteristics of the wall thickness of 6mil and 8mil with spacing from 20cm, 30cm and 40cm.
To request, there is a possibility of making tape with a special wall thickness and special emitter spacing.
| Wall thickness | Inner nominal diameter | Outer diameter | Nominal pressure | Range of working pressure | Washing Pressure | Minimal filtration |
|---|---|---|---|---|---|---|
| 6mil [150mic] | 16mm | 16,3mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 16mm | 16,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 16mm | 16,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 8mil [200mic] | 22mm | 22,4mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 10mil [250mic] | 22mm | 22,5mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
| 12mil [300mic] | 22mm | 22,6mm | 0.7bar | 0,6 – 0,9 bar | 1.2bar | 100mic/150mesh |
Depending on the uniformity of the field with a constant pressure of 0.7 bar for pipe diameters 22mm.
| Emitter | Uniformity | Emitter spacing 20cm | Emitter spacing 30cm | Emitter spacing 40cm |
|---|---|---|---|---|
| 1,1 L/h | 90% | 200m | 240m | 270m |
| 1,1 L/h | 85% | 230m | 260m | 300m |
| 1,6 L/h | 90% | 150m | 175m | 200m |
| 1,6 L/h | 85% | 175m | 200m | 230m |
| 2,3 L/h | 90% | 100m | 125m | 150m |
| 2,3 L/h | 85% | 115m | 150m | 175m |
| 3,0 L/h | 90% | – | – | – |
| 3,0 L/h | 85% | – | – | – |
| 3,6 L/h | 90% | – | – | – |
| 3,6 L/h | 85% | – | – | – |
Product range Ø22
The table shows the characteristics of the wall thickness of 8mil, 10mil and 12mil with spacing from 20cm and 40cm.
To request, there is a possibility of making tape with a special wall thickness and special emitter spacing.
| Code | Name | Inner nominal diameter | Wall thickness | Emitter spacing | Flow l/emitter | Flow l/meter | Coil length |
|---|---|---|---|---|---|---|---|
| GD22081120 | Giwadrip | 22mm | 8mil [200mic] | 20cm | 1,1lph | 5,5lph | 1500m |
| GD22081140 | Giwadrip | 22mm | 8mil [200mic] | 40cm | 1,1lph | 2,7lph | 1500m |
| GD22101120 | Giwadrip | 22mm | 10mil [200mic] | 20cm | 1,1lph | 5,5lph | 1300m |
| GD22101140 | Giwadrip | 22mm | 10mil [200mic] | 40cm | 1,1lph | 2,7lph | 1300m |
| GD22121120 | Giwadrip | 22mm | 12mil [150mic] | 20cm | 1,1lph | 5,5lph | 1000m |
| GD22121140 | Giwadrip | 22mm | 12mil [150mic] | 40cm | 1,1lph | 2,7lph | 1000m |
| GD22081620 | Giwadrip | 22mm | 8mil [150mic] | 20cm | 1,6lph | 10lph | 1500m |
| GD22081640 | Giwadrip | 22mm | 8mil [150mic] | 40cm | 1,6lph | 3,5lph | 1500m |
| GD22101620 | Giwadrip | 22mm | 10mil [150mic] | 20cm | 1,6lph | 10lph | 1300m |
| GD22101640 | Giwadrip | 22mm | 10mil [150mic] | 40cm | 1,6lph | 3,5lph | 1300m |
| GD22121620 | Giwadrip | 22mm | 12mil [150mic] | 20cm | 1,6lph | 10lph | 1000m |
| GD22121640 | Giwadrip | 22mm | 12mil [150mic] | 40cm | 1,6lph | 3,5lph | 1000m |
| GD22082320 | Giwadrip | 22mm | 8mil [150mic] | 20cm | 2,3lph | 15lph | 1500m |
| GD22082340 | Giwadrip | 22mm | 8mil [150mic] | 40cm | 2,3lph | 5lph | 1500m |
| GD22102320 | Giwadrip | 22mm | 10mil [150mic] | 20cm | 2,3lph | 15lph | 1300m |
| GD22102340 | Giwadrip | 22mm | 10mil [150mic] | 40cm | 2,3lph | 5lph | 1300m |
| GD22122320 | Giwadrip | 22mm | 10mil [200mic] | 20cm | 2,3lph | 15lph | 1300m |
| GD22122340 | Giwadrip | 22mm | 10mil [200mic] | 40cm | 2,3lph | 5lph | 1300m |
| GD22083020 | Giwadrip | 22mm | 8mil [200mic] | 20cm | 3,0lph | 20lph | 1500m |
| GD22083040 | Giwadrip | 22mm | 8mil [200mic] | 40cm | 3,0lph | 6lph | 1500m |
| GD22103020 | Giwadrip | 22mm | 10mil [200mic] | 20cm | 3,0lph | 20lph | 1300m |
| GD22103040 | Giwadrip | 22mm | 10mil [200mic] | 40cm | 3,0lph | 6lph | 1300m |
| GD22123020 | Giwadrip | 22mm | 12mil [200mic] | 20cm | 3,0lph | 20lph | 1000m |
| GD22123040 | Giwadrip | 22mm | 12mil [200mic] | 40cm | 3,0lph | 6lph | 1000m |
Maintenance of the drop by drop system takes less time. When plants get deep, consistent watering, they thrive. Inefficient, shallow watering can be a real stress for plants. Drip irrigation system promotes healthy growth and disease resistance plants
Install the drop-by-drop irrigation system and you will use less water for irrigation. If you use wells, you will notice a significant decrease in your pumping costs. You will no longer need to water the garden manually. With the automatisation of your system, you will not need to hire someone to water the plants while you are on vacation. Reducing plant diseases and unwanted weeds will considerably reduce your gardening labour and maintenance costs.
